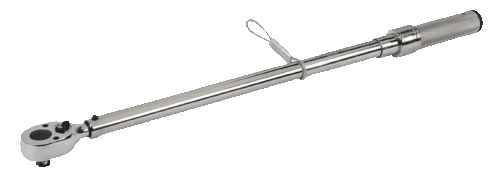

CDI 6004MFRMH Dual-Scale Dial Torque Wrench (3/4in Drive, 100–600 ft-lb)

CDI 6004MFRMH Torque Wrench – 3/4in Drive Dual-Scale Micrometer Adjustable (100–600 ft-lb)

When precision torque is required at higher ranges, standard 1/2in drive torque wrenches quickly reach their limits. The CDI 6004MFRMH is designed specifically for industrial, fleet, and heavy-equipment applications where fasteners demand controlled torque well above passenger-vehicle levels. Featuring a 3/4in drive, a wide 100–600 ft-lb torque range, and a dual-scale micrometer adjustment system, this torque wrench is built for professionals who cannot afford inaccurate torque or inconsistent performance in the field.

1. Understanding the 3/4in Drive Advantage

A 3/4in drive torque wrench is not simply a larger version of a smaller tool it is engineered for higher torque loads, larger fasteners, and more demanding applications.

• Higher torque capacity: Designed to handle torque values up to 600 ft-lb without overstressing internal components.
• Increased durability: Larger drive size reduces flex and wear under heavy loads.
• Industrial compatibility: Matches sockets and fasteners commonly used in heavy equipment and fleet maintenance.

For applications such as axle nuts, suspension components, flanges, and large structural fasteners, a 3/4in drive wrench is the appropriate and safer choice.

2. Torque Range and Dual-Scale Readability

The CDI 6004MFRMH offers a working torque range of 100–600 ft-lb, covering a wide span of industrial fastening needs.

• Primary scale: Foot-pounds (ft-lb) for North American industrial standards.
• Secondary scale: Newton-meters (N·m) for international and engineering specifications.
• Micrometer-style adjustment: Allows precise setting without guesswork.

The dual-scale design reduces conversion errors and speeds up setup when switching between specifications.

3. Accuracy and Torque Control

Accurate torque application is essential to prevent fastener failure, component distortion, and safety issues. CDI torque wrenches are widely recognized for consistent performance.

• Click-type signaling: Provides a clear tactile and audible indication when set torque is reached.
• Consistent repeatability: Designed for professional, repetitive use.
• Calibration-friendly design: Suitable for routine verification programs.

Like most professional micrometer torque wrenches, accuracy is typically specified in the clockwise direction within the calibrated operating range. Always follow calibration and usage guidelines to maintain performance.

4. Build Quality and Ergonomics

Heavy-duty torque tools must balance strength with usability. The CDI 6004MFRMH is engineered for both.

• All-metal construction: Built to withstand industrial environments.
• Knurled handle: Improves grip when wearing gloves or working in oily conditions.
• Positive locking mechanism: Prevents accidental torque setting changes during use.
• Long handle length: Provides leverage while maintaining controlled torque application.

These features help reduce operator fatigue and improve accuracy during long service intervals.

5. Common Industrial Applications

The CDI 6004MFRMH is well-suited for environments where precision and reliability matter.

• Heavy equipment maintenance: Construction, mining, and agricultural machinery.
• Fleet and truck service: Suspension components, driveline hardware, and wheel assemblies.
• Industrial assembly: Large bolted joints and structural fasteners.
• Energy and infrastructure: Flanges, anchors, and mechanical connections.

Using a properly sized torque wrench in these applications helps protect both equipment and personnel.

Bonus Tip:
After use, always return the torque setting to the lowest value in the range not zero to help preserve internal spring life.

Conclusion

The CDI 6004MFRMH is a purpose-built torque wrench for professionals working in high-torque environments. Its 3/4in drive, wide 100–600 ft-lb range, dual-scale micrometer adjustment, and rugged construction make it a dependable choice for industrial and heavy-equipment applications. When accuracy, durability, and repeatability matter, investing in a correctly sized torque wrench like the 6004MFRMH helps ensure fasteners are tightened safely and to specification.

Explore CDI 6004MFRMH Dual-Scale Dial Torque Wrench (3/4in Drive, 100–600 ft-lb) at Abolox and equip your team with precision tools built for demanding torque applications.
