URREA 1/2" Drive Chrome Spline Socket 22
URREA 1/2" Drive Chrome Spline Socket 22
Note: Some pictures may not show the actual item, but show a similar representation instead.

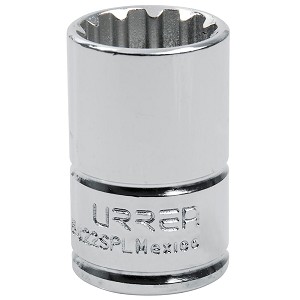

URREA 5422SPL 1/2" Drive Chrome Spline Short Socket Size 22

Your Price: $2.76
Availability: IN-STOCK - Usually ships within 1 to 4 business days


Your data is secure Your data is secure with Abolox. All personal and financial information is encrypted during transmission. We do not share your credit card details with third-party sellers, nor do we sell your information to others.
Part Number: URR5422SPL
The spline socket design offers higher strength in a more compact profile, making it common on military and commercial aircraft. Urrea spline sockets are made from high quality steel. Polished chrome plated finished. Spline size: 22. Type: II. Inches: 11/16". MM: 17mm. Length: 5/32". Nut end outside diameter: 1/2". Drive end outside diameter: 5/16”. Nut depth: 17/32".

Urrea 1/2” Drive Spline Sockets

SPLINE SIZEITEMTYPEINCHESMMLENGTHNUT END DIAMETERDRIVE END OUTSIDE DIAMETERNUT DEPTH
165416SPLI1/2”13 mm5/32"1/2"7/8”9/16”
185418SPLI9/16”14 mm5/32"1/2"7/8”9/16”
205420SPLII5/8”16 mm5/32"1/2"5/16”9/16”
225422SPLII11/16”17 mm5/32"1/2"5/16”17/32
245424SPLII3/4”19 mm5/32"1/2"1”5/8”
265426SPLII13/16”20 mm5/32"1/2"1-5/32”5/8”
285428SPLII7/8”22 mm5/32"1/2"1-5/32”5/8”
305430SPLII15/16”24 mm5/32"1/2"1-1/4”5/8”
