URREA 3/8" Drive Chrome Spline Socket, 12
URREA 3/8" Drive Chrome Spline Socket, 12
Note: Some pictures may not show the actual item, but show a similar representation instead.

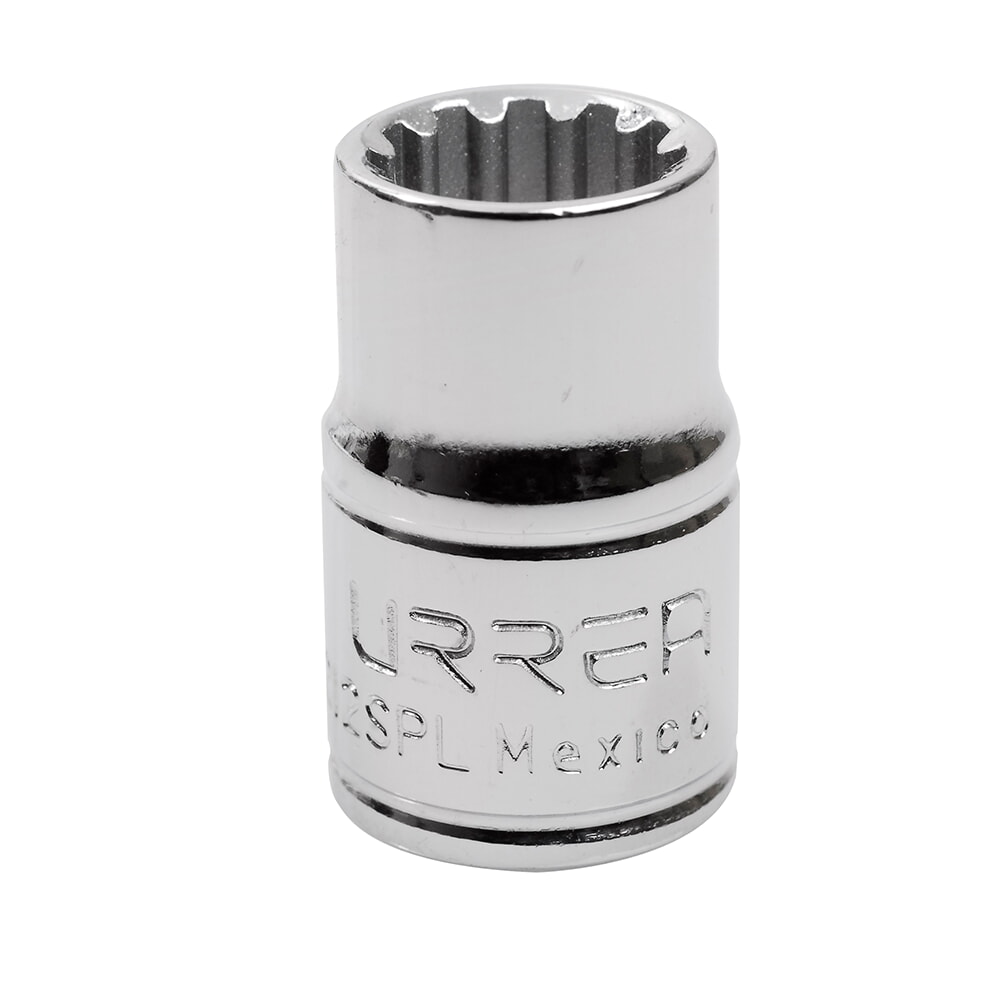

URREA 5212SPL 3/8" Drive Chrome Spline Socket Size 12

Your Price: $1.59
Availability: IN-STOCK - Usually ships within 1 to 4 business days


Your data is secure Your data is secure with Abolox. All personal and financial information is encrypted during transmission. We do not share your credit card details with third-party sellers, nor do we sell your information to others.
Part Number: URR5212SPL
The spline socket design offers higher strengthin a more compact profile, marking it common on military and commercial aircraft. Urrea spline sockets are made from high quality steel. Polished chrome plated finished. Size spline: 12 . Type: I. Inches: 3/8". MM: 9mm. Length: 1-1/16". Nut end outside diameter: 19/32". Drive end outside diameter: 21/32". Nut deep: 1/8"

Urrea 3/8” Drive Spline Sockets

SIZE SPLINEITEMTYPEINCHESMMLENGTHNUT END OUTSIDE DIAMETERDRIVE END OUTSIDE DIAMETERNUT DEPTH
125212SPLI3/8”9 mm1-1/16”19/32”21/32”1/8"
145214SPLI7/16”11 mm1-1/16”5/8”21/32”1/8"
165216SPLII1/2”13 mm1-1/16”3/4”3/4”1/8"
185218SPLII9/16”14 mm1-7/64”25/32”22/32”1/8"
205220SPLII5/8”16 mm1-3/16”15/16”61/64”1/8"
